HP75 SERIES

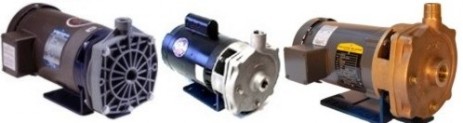

Price ® Pump Models HP75/HP100

Close Coupled Horizontal Centrifugal Pumps
Flows to 68 GPM (316SS or Bronze Impeller)/ Heads to 180 feet
Flows to 20 GPM (CPVC Impeller) / Heads to 160 feet

Kühlwasserpumpe Einsatz bei großen Puls-YAG-Laser Systemen


Sizes:

HP75 - 3/4" x 3/4" x 6"
HP100 - 1.0" x 1.0" x 6"

Materials:

HP75 Series

• HP75BN (Bronze)


• HP75BS (Bronze with Stainless Steel impeller)


• HP75KN (Kanigen Plated)


• HP75KS (Kanigen Plated with Stainless Steel impeller)


• HP75CN (CPVC)


• HP75CS (CPVC with Stainless Steel impeller)


• HP75SS (316 Stainless Steel)


• HP75SC (316 Stainless Steel body / CPVC impeller)


• HP75NN (Noryl body with CPVC Impeller)


HP100 Series

• HP100AB (Bronze)


• HP100BS (Bronze with Stainless Steel impeller)


• HP100SS (316 Stainless Steel)


• HP100SC (316 Stainless Steel body / CPVC impeller)


Applications:
Industry-Circulating chilled water, Booster pumps, Sprinkler pumps, Deionized water
OEM-Booster pumps, Chiller pumps for various uses, Air conditioning, Laser coolers

Features:
Standard NEMA 56J motors
Bronze volute, Electroless Nickel Plated volute, CPVC molded volute, or Stainless Steel Volute and Bracket
Compact size
Mechanical seal: 5/8" Type 6 Buna, carbon vs. ceramic standard
Molded CPVC, Bronze or 316SS impellers available on all models
